Description

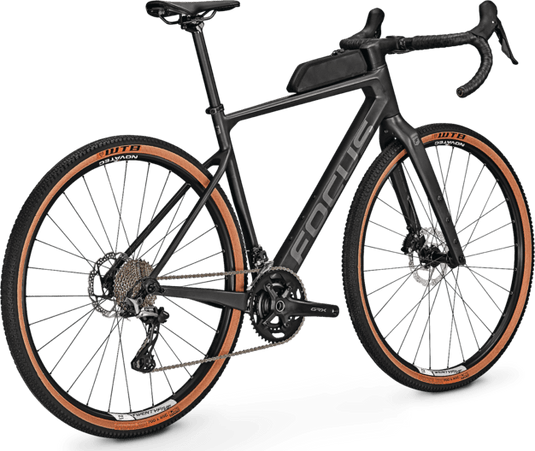

focus gravel bike 2021 FOCUS ATLAS 8.7 GRX Carbon Gravel Bike – UAEcycleATLAS 8. 7 Features Carbon frame Shimano GRX600 2x11 Novatec 25 Elite wheels Pushes boundaries Comfortable and agile on any terrain This light carbon bike is designed for your fast gravel escapes. Due to the combination of long reach and short stem, the ATLAS 8. 7 is a rather long bike resulting in a really smooth ride. The front end provides confidence while going downhill. Super short chainstays make the gravel bike playful and agile, which will
ATLAS 8.7 Features
- Carbon frame
- Shimano GRX600 2x11
- Novatec 25 Elite wheels
Pushes boundaries
-
Comfortable and agile on any terrain
This light carbon bike is designed for your fast gravel escapes. Due to the combination of long reach and short stem, the ATLAS 8.7 is a rather long bike resulting in a really smooth ride. The front end provides confidence while going downhill. Super short chainstays make the gravel bike playful and agile, which will please all riders who like to tackle each other no matter the surface. To make sure that you can handle this fast bike perfectly, you can adjust the handlebar position according to your needs. The stem is available in six different lengths from 70 to 120 mm and the handlebar height can be changed with special two-piece spacers.
-
Various options to mount equipment
The ATLAS 8.7 frame offers many options to carry bags comfortably. You can easily attach a bar, saddle, or frame bag. The bike comes with our top tube bag in which you can store essential tools or snacks to eat while pedalling. For bottle cages, the carbon frame provides three more mounting possibilities. One bottle cage can be screwed at the seat tube and two more at the down tube – one above and one below. On top, the three screws on the fork’s left and right side offer two additional mounting points. Here you can install racks for further luggage or bottle cages. With a maximum system weight (bike, rider, and equipment) of 120 kg, this light carbon gravel bike allows you to take lots of stuff with you.
-
Made for fast gravel escapes
Thanks to fast-rolling and tubeless-ready 45 mm WTB Riddler tyres and Shimano GRX600 2x11 groupset with gravel-optimised transmission, the ATLAS 8.7 is built to accompany your bikepacking adventures. The wide handlebar with flare provides full control and comfort. The C.I.S. (Cockpit Integration Solution) technology ensures a clean look without any cables in the way when attaching a bar bag. Whether in bad weather conditions or on demanding surfaces, when suffering during steep climbs or going the really long distances – the ATLAS 8.7 fully supports your ride, even to the end of the world.
Geometry
Geometry
| XS | S | M | L | XL | ||
|---|---|---|---|---|---|---|
| Size in mm | 480 | 510 | 540 | 570 | 600 | |
| Handlebar width | 420 | 420 | 440 | 440 | 440 | |
| Stem length | 80 | 90 | 90 | 90 | 100 | |
| Crank length | 170 | 170 | 172.5 | 172.5 | 175 | |
| Seatpost length | 350 | 350 | 350 | 350 | 350 | |
| A | Seat tube length | 445 | 485 | 515 | 545 | 585 |
| B | Top tube length | 532 | 549 | 567 | 591 | 606 |
| C | Head angle (°) | 70.5 | 70.5 | 70.5 | 70.5 | 70.5 |
| D | Seat angle (°) | 74 | 73.5 | 73.5 | 73.5 | 73.5 |
| E | Chainstay length | 425 | 425 | 425 | 425 | 425 |
| F | Bottom bracket drop | 75 | 75 | 75 | 75 | 75 |
| G | Head tube length | 115 | 120 | 130 | 150 | 180 |
| H | Fork length | 425 | 425 | 425 | 425 | 425 |
| I | Fork offset | 50 | 50 | 50 | 50 | 50 |
| J | Wheelbase | 1016 | 1028 | 1046 | 1068 | 1088 |
| K | Stack | 569 | 574 | 583 | 611 | 630 |
| L | Reach | 370 | 380 | 395 | 410 | 420 |
| M | Standover height | 450 | 490 | 520 | 550 | 590 |
Size Chat:
- XS: 158-168cm
- S:168-178cm
- M:173-183cm
- L:180-190cm
Specification
- Frame: Carbon, disc, C.I.S. integration, press fit BB86, 148x12 mm thru-axle, flat mount 160/160 mm, internal cable routing, Toptube Bag
- Fork: Carbon, disc, 110x12 mm thru-axle, flat mount 160/160 mm, internal brake cable routing, multiple mounting points
- Shifter: Shimano GRX ST-RX600, 11-speed
- Front derailleur:Shimano GRX FD-RX810
- Rear derailleur: Shimano GRX RD-RX810, 11-speed
- Cassette: Shimano 105 R7000, 11-speed,11-34T
- Chain: Shimano CN-HG601, 11-speed
- Crankset: Shimano RS520 46/30T
- Handlebar: FOCUS JD RA85, 31,8 mm, drop: 116 mm, reach: 74 mm, flare: 10°
- Grips: FOCUS Bartape SL
- Stem: FOCUS C.I.S. 2.0 integrated, 31.8 mm, aluminium
- Headset: ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S.
- Saddle: fi'zi:k Taiga
- Seatpost: Aluminium, 27.2 mm, 0 mm set-back
- Brakes front/rear: Shimano GRX BL-RX400,160mm rotors
- Wheelset: Novatec 25 Elite, 25-622, disc, center lock, front: 110x12 mm, rear: 148x12 mm
- Tires front / rear:WTB Riddler, 700 x 45C, folding / WTB Riddler, 700 x 45C, folding
- Weight:9.6 kg
- Permissible system weight:120 kg
